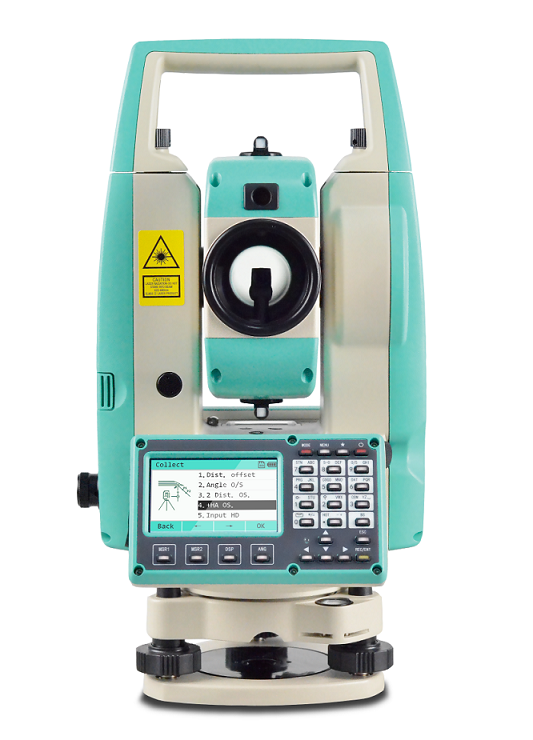

Stazioni Totali Reflectorless Ruide RCS

TELESCOPIC

Length = 152mm | Telescope = 45mm | EDM = 47mm | Magnification =N30x

Image = Erect | Field of View = 1°30’ | Resolving Power = 3” | Mini.Focus = 1.5m

DISTANCE

Single Prism Range = 5000m | Accuracy = +/-(2mm+2ppm*D) m.s.e | Non-Prism Range = 400m

Accuracy = +/-(3mm+2ppm*D) m.s.e | Measuring Time = Fine: 0.3s | Normal: 0.2s

Meteorologic Correction = ATMOSense Auto Correction | Prism Constant = Manual

ANGLE

Accuracy = 2” | Method = Absolute Encoding | Detection System = H: Dual; V: Dual

Mini. Reading = 1”/5” | Diameter of Circle = 79mm | Vertical Angle 0° = Zenith: 0°; Horizontal: 0°

Unit = 360°/400gon/6400mil

DISPLAY

Display Unit = Graphic 640*320 color touch LCD | No. of Displays = 2 | Keyboard = Alphanumeric

TILT CORRECTION

Tilt Sensor = Dual Axis | Method = Liquid Electric | Range = 4’ | Resolution = 1”

OPTICAL PLUMMET

Image = Erect | Magnification = 3x | Focusing Range = 0.3m to infinite

LEVEL

Plate Level = 30”/2mm | Circular Level = 8’/2mm

GENERAL

INTERFACE = RS232, SD card, USB, Bluetooth | Guide Light | Ligtning Measure | Weight = 5.4kg

Dimension = 353 (H) * 206 (L) * 200 (W) mm | Working Temperature = -20°C to 50°C

Battery Type = Rechargeable Li-on Battery, 7.4V, 3000mAh | Water & Dust Proof = IP65

Working Duration = 12 hours

Video Tutorial:

TASTIERA E COMANDI PRINCIPALI
